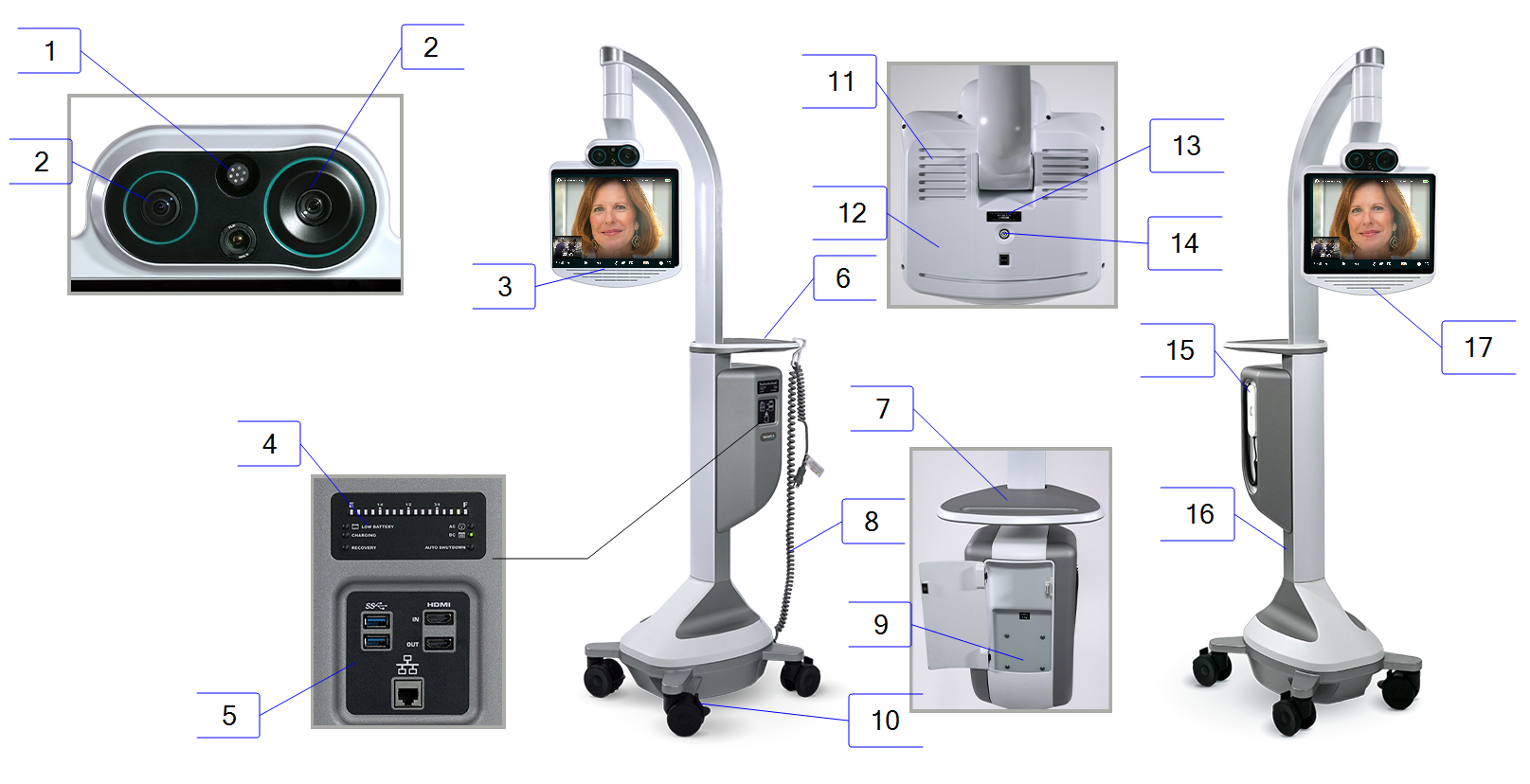

Lite 4 Anatomy and Components

1	Directional Microphone	Used to pick up audio in a narrow zone.
2	Dual High-Definition Cameras	Captures remote video for viewing on the Provider Access Software.
3	Touch Sensitive Display	Enables local controls and shows Provider Access Software user’s face.
4	Battery Charging Status	Displays the power and charging status of the Lite 4.
5	Expansion Panel	Includes ports for approved USB peripheral devices, HDMI output, optional HDMI input, and Ethernet.
6	Tray	Work surface for a laptop or other items.
7	Handle	Easily maneuver the Lite 4.
8	Power Cord	Used to power the Lite 4 and recharge the battery.
9	Storage Compartment	Holds miscellaneous items.
10	Wheel Locks	Locks each wheel in place when stationary (four wheels).
11	Air Vents	Air vents help maintain a safe operating temperature for the device. (Do not cover)
12	Back of Touch Display	Power button and additional USB ports.
13	Serial Number Plate	Contains the device’s serial number and support contact phone number.
14	Power Button	Used to toggle the power for the Lite 4.
15	Privacy Handset	Used for conversations requiring privacy or intelligibility in loud environments.
16	Device Nameplate	Nameplate detailing the device’s serial number and regulatory information.
17	Speakers	Used during sessions to hear the person connected to the device.
