VITA Overview

Touch-screen used for local control of VITA.

VITA's collision avoidance sensors consist of 3D near-IR depth sensors and sonars to provide for detection of obstructions.

Captures audio for playback on the Provider Access Software.

Used to connect to Dock (allows charging and automated Docking).

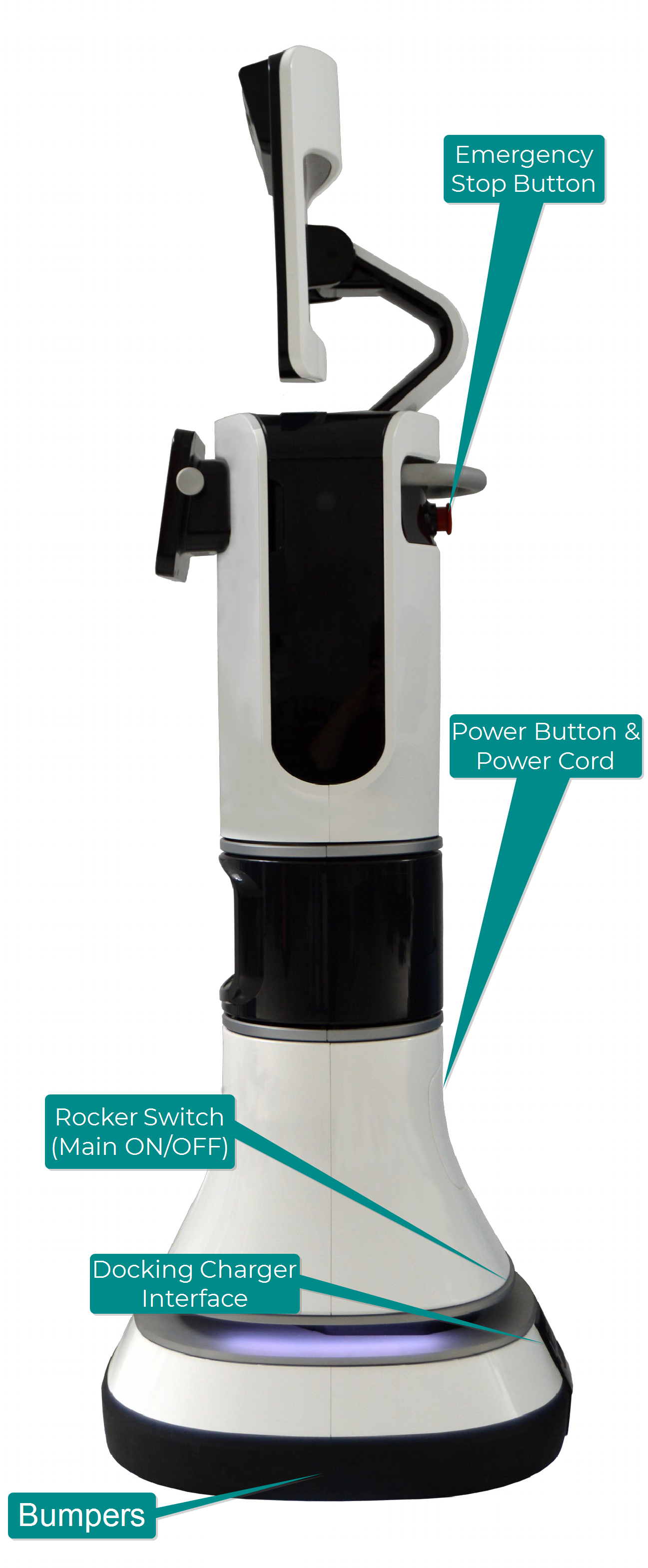

Stops VITA’s (base) movements by disengaging its motors. Also, used to disengage wheels, when needing to quickly move VITA manually. See “VITA Emergency Stop”.

Plays audio from Provider Access microphone on VITA.

FDA Class II Laser Pointer fixed to the VITA pan/tilt Head.

Avoid exposure. Laser radiation is emitted from this aperture.

VITA status indicators.

Refer to VITA Status Indicator Lights”.

The VITA power button turns on the computer and display.

Power cord used to recharge VITA without the Dock.

Displays remote user’s face (video from the Provider Access) or recorded pictures and video from the Provider Access on VITA.

Removes power to the VITA computer systems.

An expansion bay is located on each side of the VITA. One side contains the Stethoscope and Headset, the other side contains the Privacy Handset and the Input/Output ports for connecting approved devices to VITA.

Capture remote video for viewing at the Provider Access.
