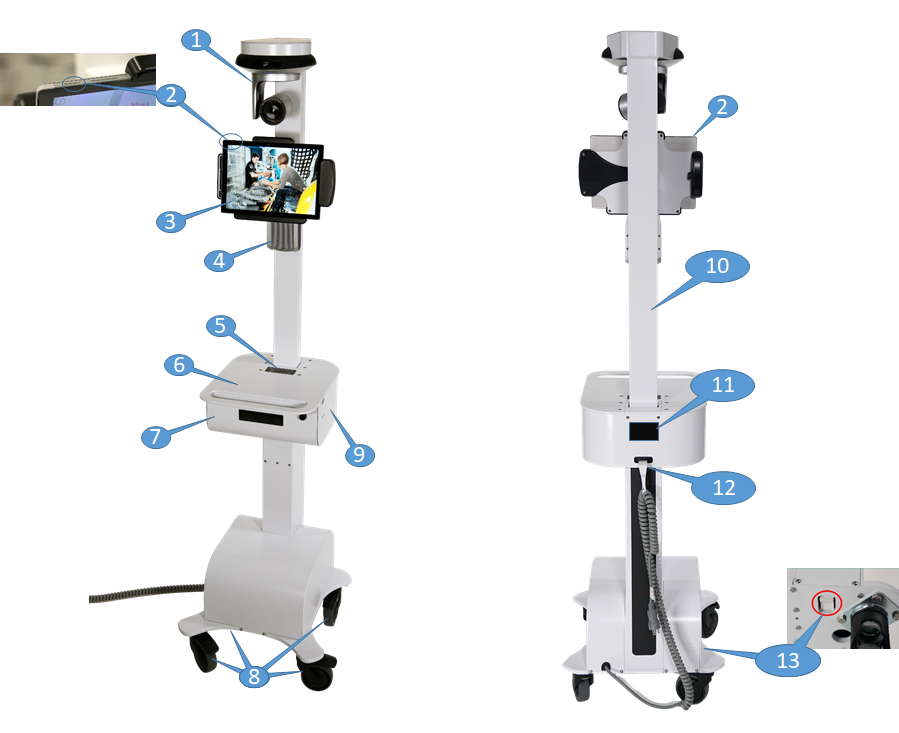

Vici Anatomy and Components

1	Camera	Captures remote video for viewing at the Provider Access up to 720p HD.
2	Tablet Power Button	Powers on/off the tablet.
3	Display Tablet	Displays Provider Access Software user’s face on the Vici tablet.
4	Echo Canceling Speaker and Microphone	Enhanced audio for speaking and listening to the whole room.
5	Base Battery Indicator	Base battery indicator with LED lights near the column.
6	Shelf	Shelf for holding a laptop, chart, etc.
7	Storage Drawer	Sliding, lockable drawer for storage.
8	Wheel Locks	Locks each wheel in place when stationary (four wheels).
9	USB Ports	Ports for service and peripheral device usage.
10	Neck	Move neck up or down to adjust height.
11	Nameplate	Specifies the manufacturer, model, serial number, regulatory body markings, WEEE trash symbol, patent numbers, and power ratings.
12	Power Cord and Hook	Used to power the Vici and recharge the batteries. The Power Cord Hook secures the power cord when moving the Vici to a new location.
13	Rocker Switch	Located under the base, next to the wheel to disengage power from battery (power off only when instructed by Teladoc Health personnel).
